182-54 BIPV System

CIGE-BIPV-G3-435~455

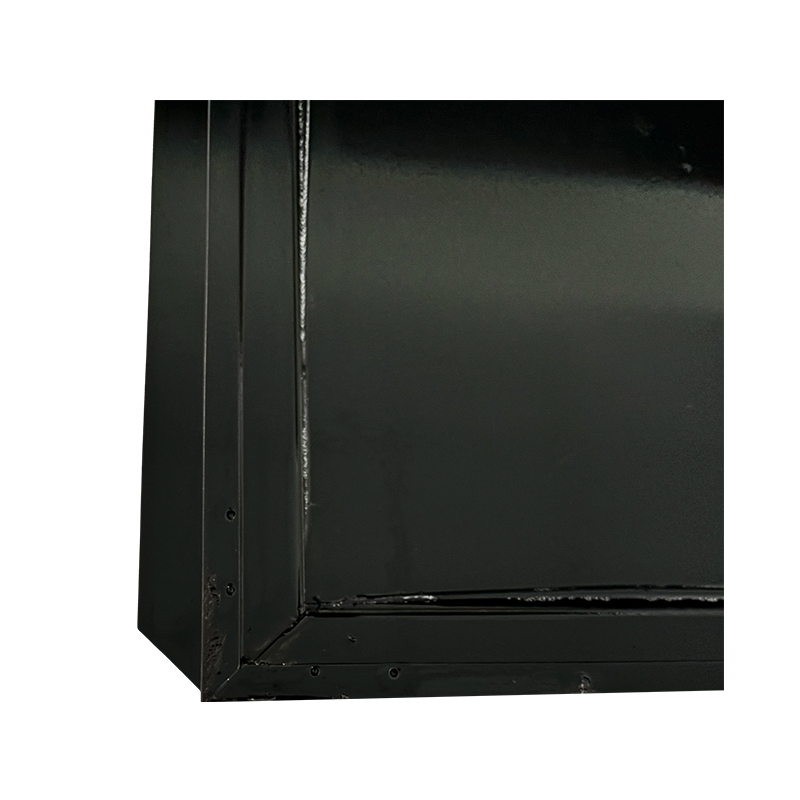

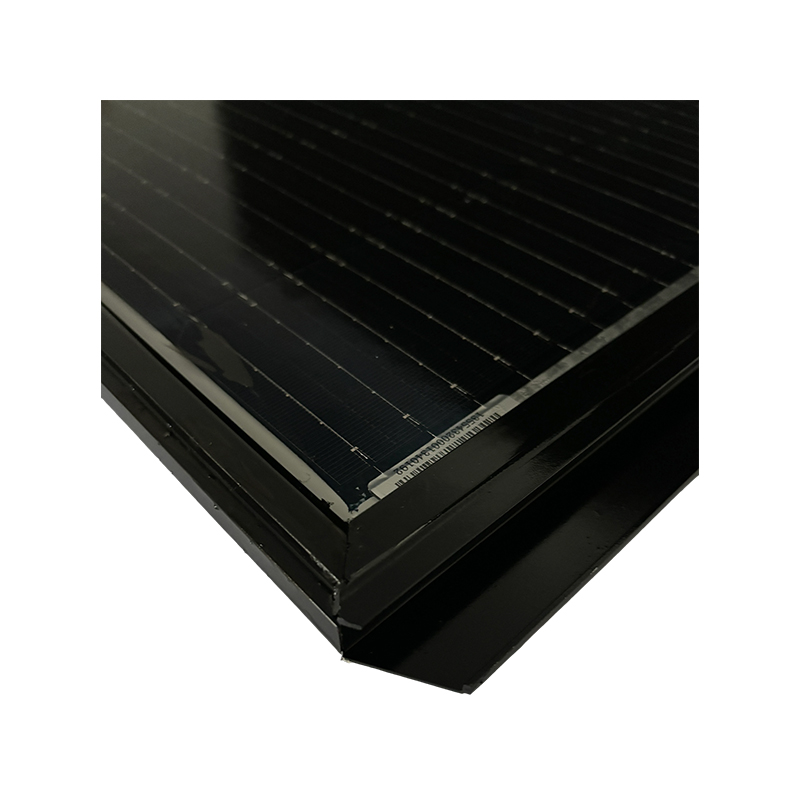

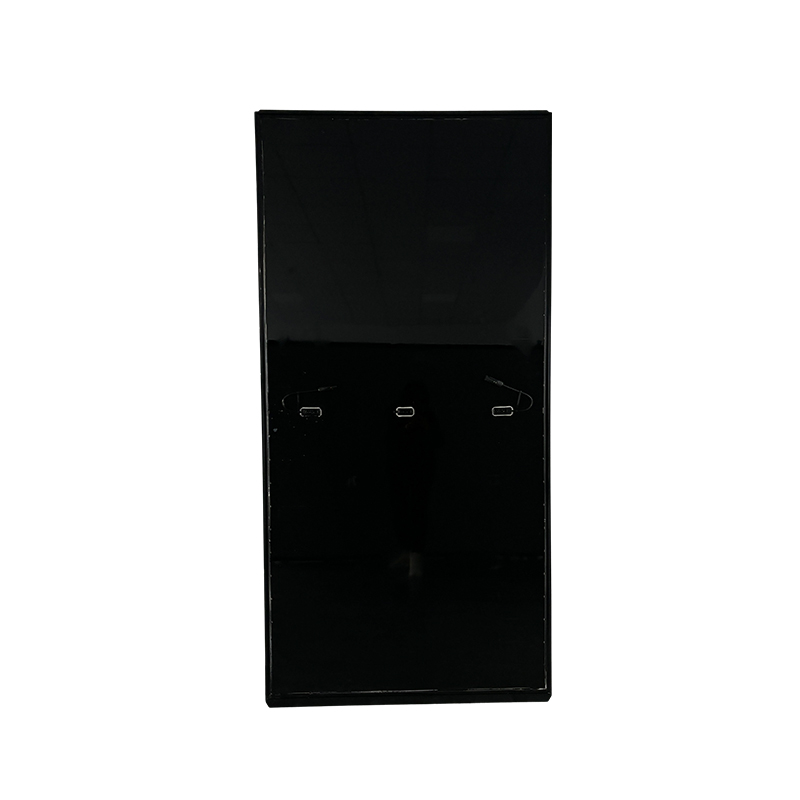

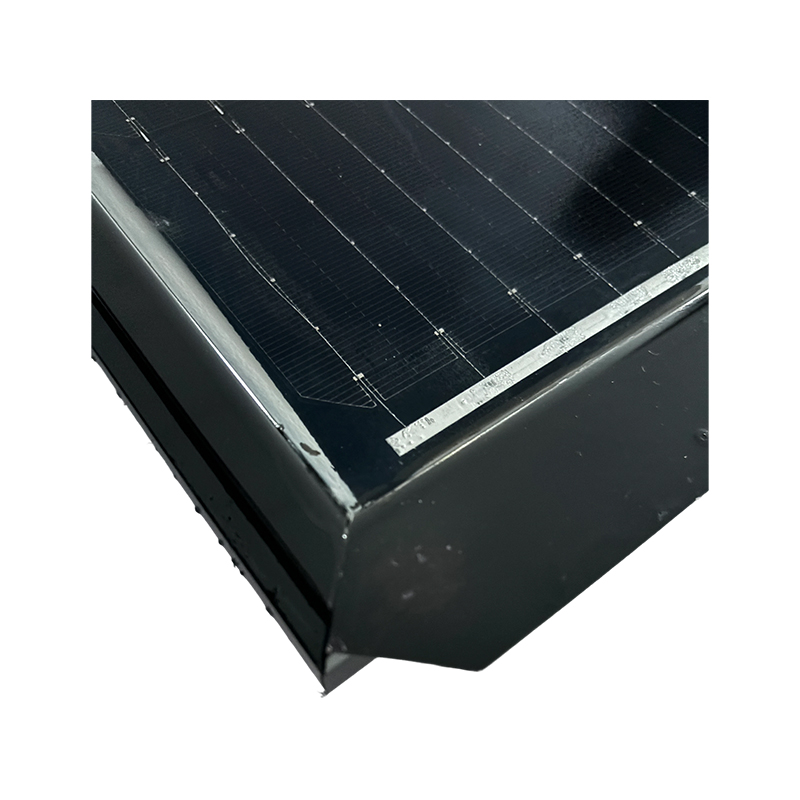

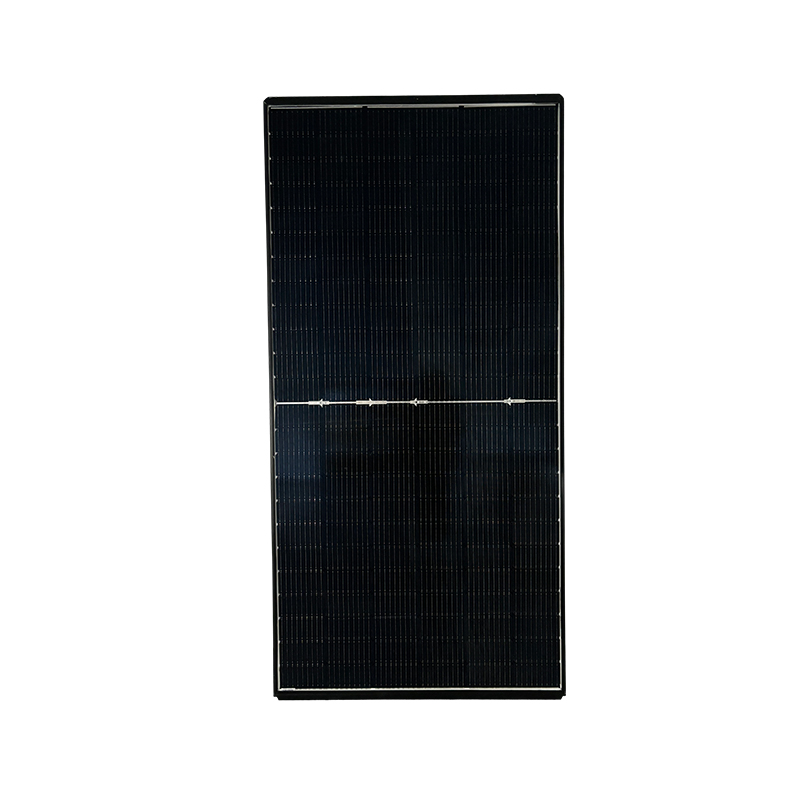

Product features: 182-54 BIPV system, photovoltaic panels use dual-glass modules, the frame uses a customized cross-section, the left and right frames are fixed frames, the upper frame is the bottom frame, and the lower frame is the cover frame. After installation, the cover frame of the upper photovoltaic module covers the bottom frame of the lower photovoltaic module to achieve the upper and lower waterproof structure of the photovoltaic module; the left and right fixed frames are installed on the drainage trough, and the BIPV photovoltaic module is fixed to the drainage trough with a pressure block to achieve the left and right waterproof structure of the photovoltaic module. The left and right gaps of the photovoltaic module are waterproofed with a waterproof cover for secondary waterproofing, and the entire system does not need to be glued on site.
Product function: BIPV photovoltaic system is used on the top of buildings such as household, industrial and commercial factories, carports, etc., replacing the color steel tile, roof tile and other materials used in the construction of traditional roofs.
Product parameters: Photovoltaic module power 435-455W, photovoltaic module installation size 1773*1145*16.8mm, meeting the 15cm water storage and pressure maintenance function.
×
